Groundwater Depth [2.0]

How to create a groundwater depth data stream.

Travis Bates
Updated by Travis Bates
IN THIS ARTICLE

Calculate the true water level with a reference offset. Typically used for depth-to-groundwater calculations for Civil and Geotechnical applications. Groundwater is a basic offset for water level data. This simple model calculates the depth to groundwater by subtracting the “sensor measured depth” from the “installation depth.”

Groundwater Depth = Install Depth - Head

  • Install Depth is the sensor installation depth from a point of reference, typically a wellhead.
  • Head is the sensor measured water level.

Please note: This model is not yet available in the Closed Beta.

Support

Groundwater can be calculated from any water level measurement.

  • HYDROS 21
  • CTD
  • CTD-5
  • CTD-10

New Groundwater
  • On the Data page, click New Data.
  • Select Groundwater as the type.
  • Select one or more water level sources.
  • Edit the data stream color.
  • Edit the data stream name.
  • The sensor Position is the default value for the install depth/offset.
  • Edit the Height/Depth, or enter a value if none is present.
  • Select Create to finish.
  • The new data stream(s) will now be in your data list.

Groundwater depth

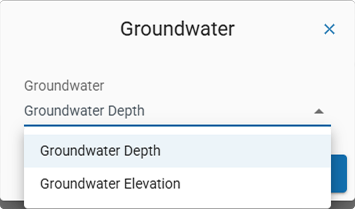

Groundwater variants

How-To-Video
